Technical Details Lighting Level 7W LED Strip Noise Level (Max) 65 dB Power 120V Frequency 60Hz Amperage 3A Filter Type Aluminum Mesh Blower Type Internal Control Type 3 Speed Touch Control Accessories (not included) Charcoal Filter (FT0130) Recirculating Kit (ARC3001P) 10-12ft Duct Extension (RHDC01AP) Color/Finish Stainless Steel

Dimensions Product Dimensions (W*D*H) 30″ – 19 3/4″ – 2 3/4″ Ducted Hood Height (Min/Max) 22 13/16″ – 40 15/16″ With Extension Duct Cover (Min/Max) 40-11/16 / 77-3/4 (Ext. RHDC01AT Not Included) Duct Diameter 6" Weight Net Weight 26 lbs. Gross weight 44.4 lbs.

CUTOUT Cutout Width 30 Inch Cutout Depth 19 3/4 Inch Cutout Height 40 15/16 Inch

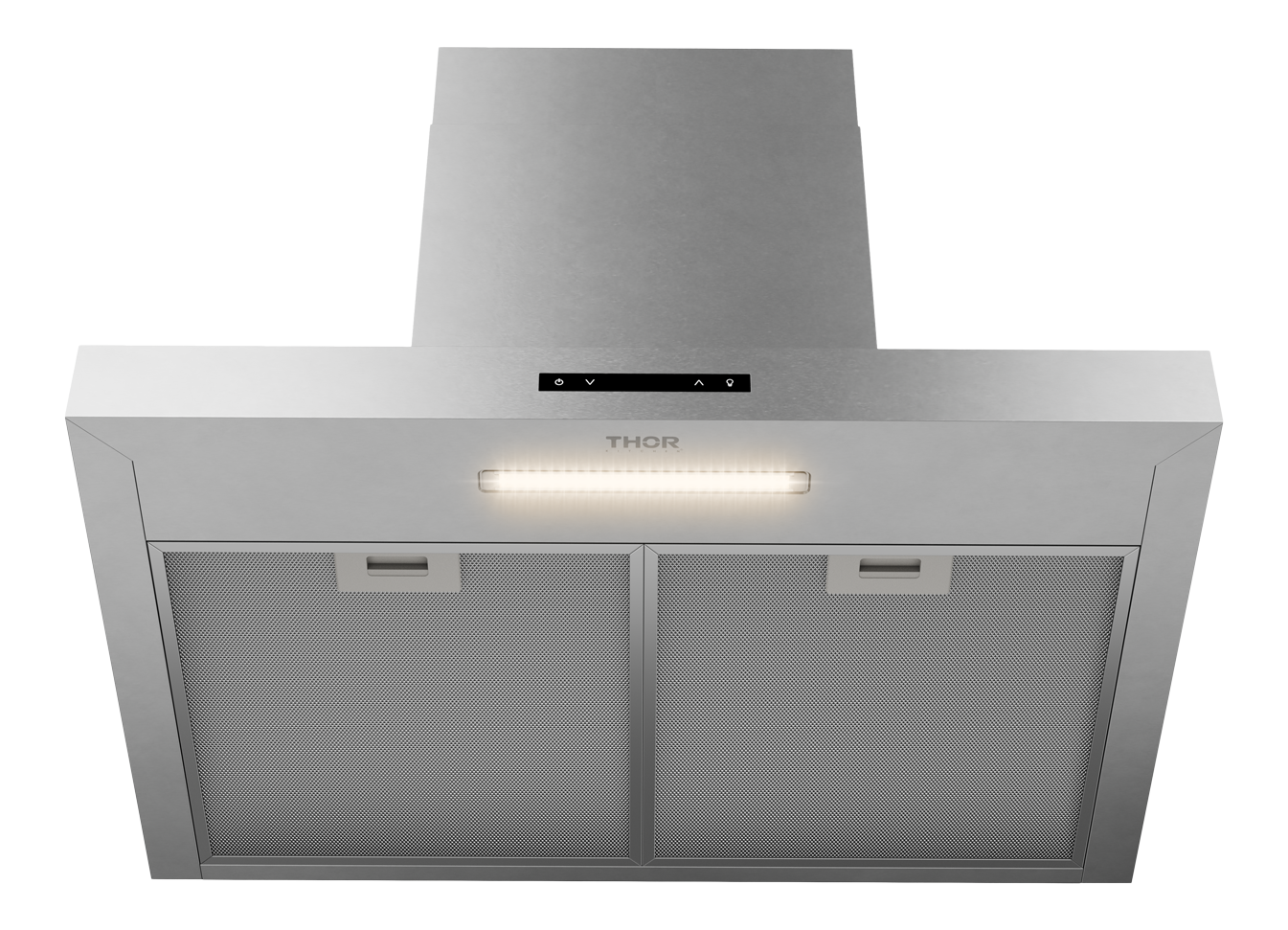

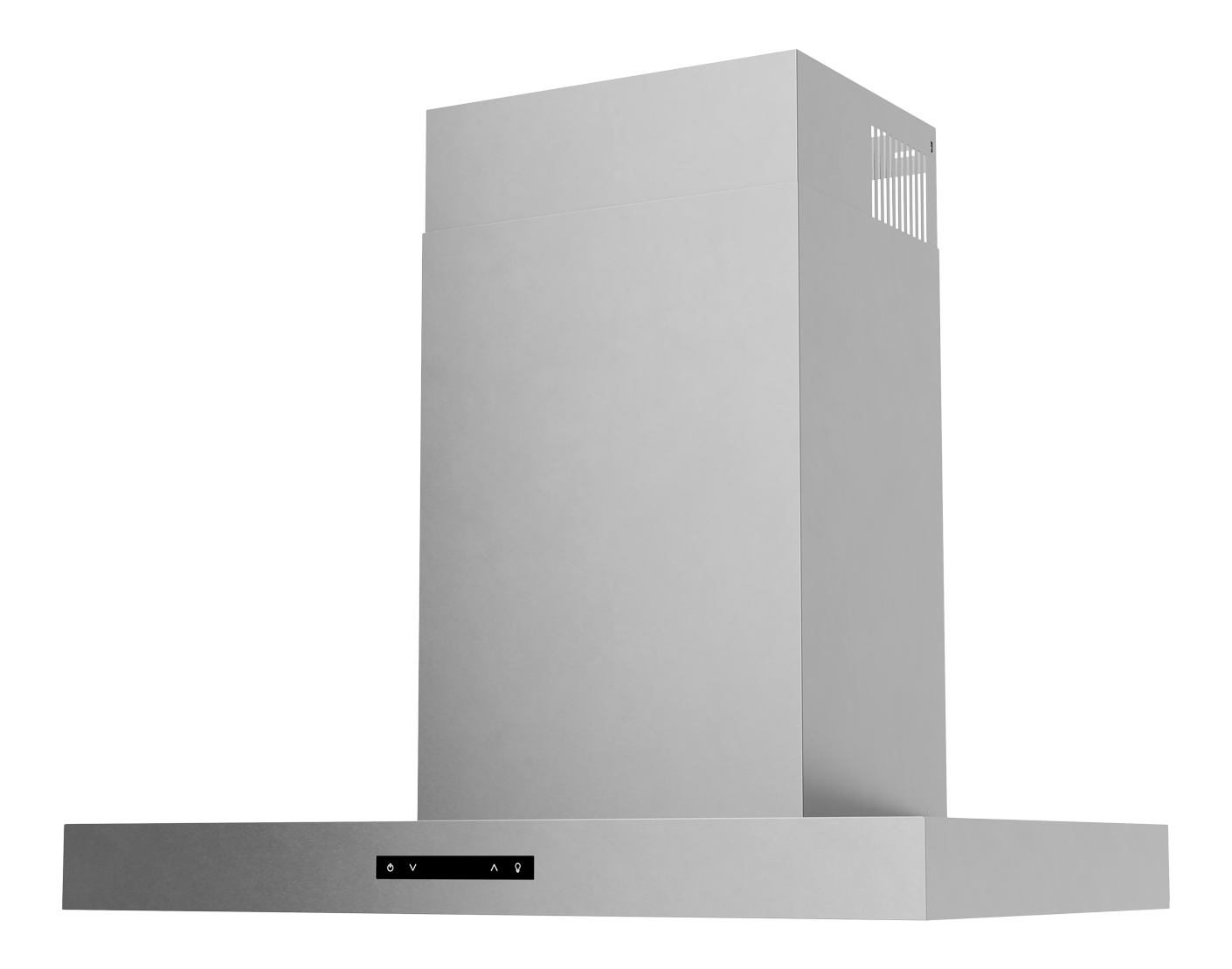

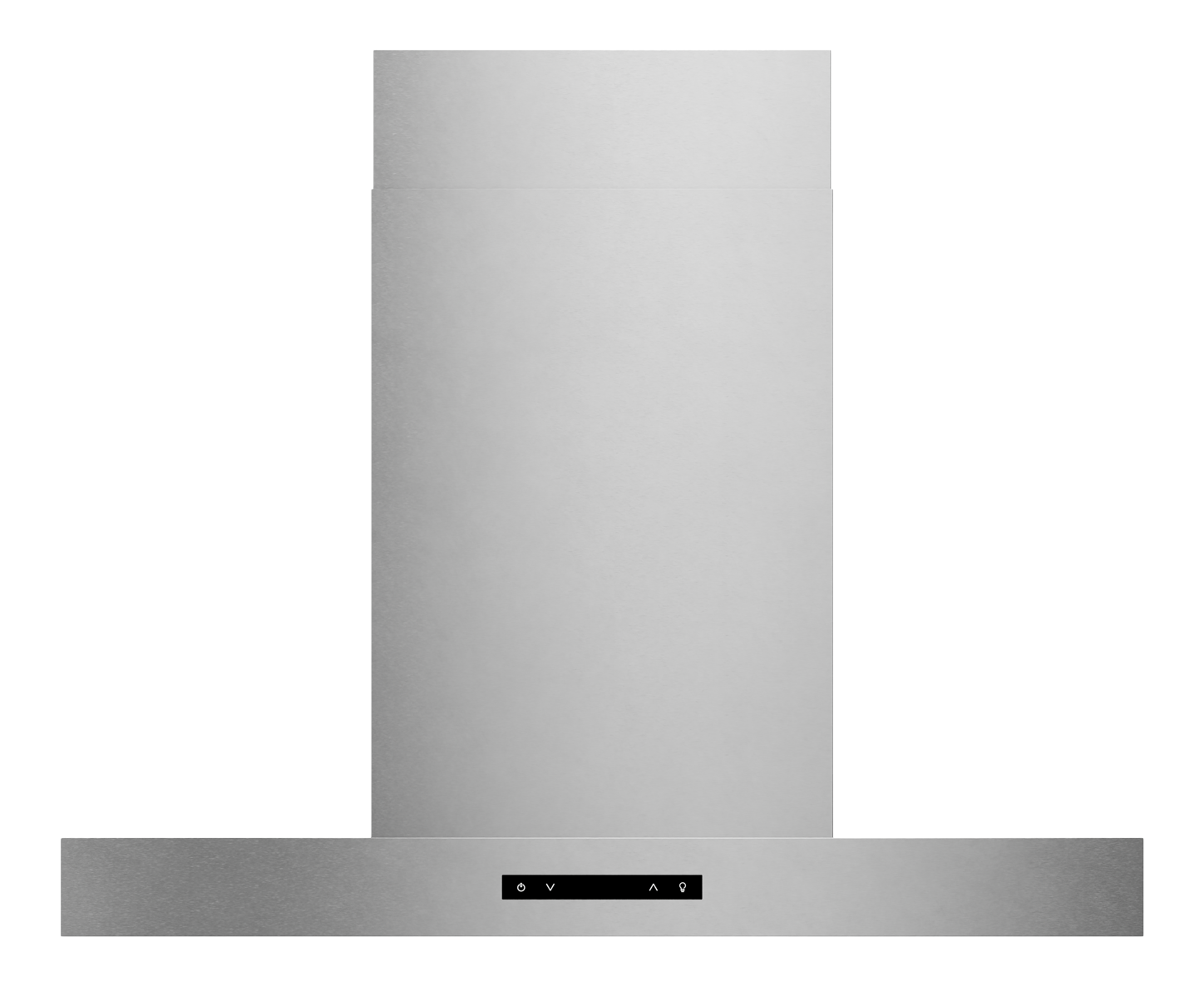

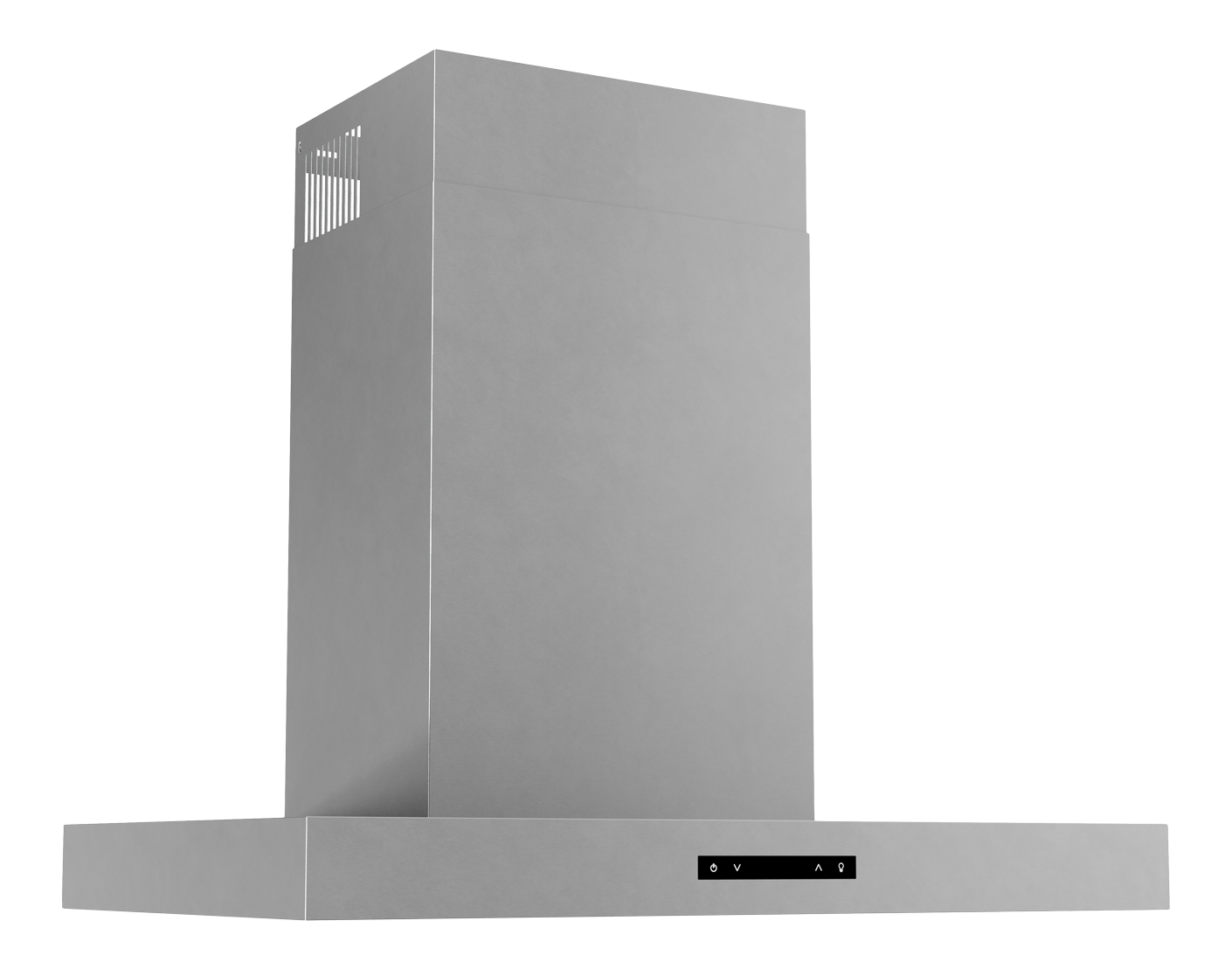

Thor Kitchen 30 Inch Contemporary Wall Mount T-Shape Range Hood - Model ARH30T

ARH30T

Thor Kitchen 30 Inch Contemporary Wall Mount T-Shape Range Hood – Model ARH30T

Name: Thor Kitchen 30 Inch Contemporary Wall Mount T-Shape Range Hood - Model ARH30T
Brand: thorkitchen.com
SKU: ARH30T
Price: 1045.00 CAD
Availability: InStock

THOR Kitchen offers the power and performance of a premium pro-style appliance at a practical price. The 30 Inch T-Shape Professional Range Hood in Stainless Steel is a compact powerhouse that adds a sleek, modern look to your kitchen and is designed to eliminate odors, smoke and steam quietly and efficiently. Fish on the plate? Good. The lingering aroma of fish in every room? Not so good. #cooklikeagod

$1,045.00

$1,463.00

Thor Kitchen 30 Inch Contemporary Wall Mount T-Shape Range Hood - Model ARH30T

$1,045.00

$1,463.00

All-in-One Kitchen Solution

Whether you're grilling, stir-frying, or chopping, the Griddle, Wok Ring and Bamboo Cutting Board for Gas Rangetop is the perfect combo. Hurry, only at thorkitchen.com

Technical Details
Lighting	Level 7W LED Strip
Noise Level (Max)	65 dB
Power	120V
Frequency	60Hz
Amperage	3A
Filter Type	Aluminum Mesh
Blower Type	Internal
Control Type	3 Speed Touch Control
Accessories (not included)	Charcoal Filter (FT0130) Recirculating Kit (ARC3001T) 10-12ft Duct Extension (RHDC01AP)
Color/Finish	Stainless Steel

Dimensions
*Product Dimensions (WDH)*	30″ – 19 3/4″ – 2 3/4″
Ducted Hood Height (Min/Max)	22 13/16″ – 40 15/16″
With Extension Duct Cover (Min/Max)	40-11/16 / 77-3/4 (Ext. RHDC01AT Not Included)
Duct Diameter	6"

Weight
Net Weight	26 lbs.
Gross weight	44.4 lbs.

CUTOUT
Cutout Width	30 Inch
Cutout Depth	19 3/4 Inch
Cutout Height	40 15/16 Inch

Specification and Manual

📄 Specification Sheet
📄 Use and Care Manual
📄 Installation Manual

Technical

Technical Details
Lighting	Level 7W LED Strip
Noise Level (Max)	65 dB
Power	120V
Frequency	60Hz
Amperage	3A
Filter Type	Aluminum Mesh
Blower Type	Internal
Control Type	3 Speed Touch Control
Accessories (not included)	Charcoal Filter (FT0130) Recirculating Kit (ARC3001P) 10-12ft Duct Extension (RHDC01AP)
Color/Finish	Stainless Steel

Dimension and Weight

Dimensions
*Product Dimensions (WDH)*	30″ – 19 3/4″ – 2 3/4″
Ducted Hood Height (Min/Max)	22 13/16″ – 40 15/16″
With Extension Duct Cover (Min/Max)	40-11/16 / 77-3/4 (Ext. RHDC01AT Not Included)
Duct Diameter	6"

Weight
Net Weight	26 lbs.
Gross weight	44.4 lbs.

Cutout

CUTOUT
Cutout Width	30 Inch
Cutout Depth	19 3/4 Inch
Cutout Height	40 15/16 Inch

Spec and Manual

Specification and Manual

📄 Specification Sheet
📄 Use and Care Manual
📄 Installation Manual

PRODUCT FEATURES

With the integrated heat sensor, your appliances operate with an added layer of safety. It can detect abnormal temperature spikes, protecting your home from potential fire hazards while optimizing energy efficiency.

A 5-layer aluminum mesh filter with reminders for both clean filter maintenance and charcoal filter replacement (charcoal filter not included).

3 fan speeds allow for easy adjustment between low 232, medium 330, or high 550 CFM.

HEAT SENSOR

With the integrated heat sensor, your appliances operate with an added layer of safety. It can detect abnormal temperature spikes, protecting your home from potential fire hazards while optimizing energy efficiency.
REPLACEMENT INDICATOR

A 5-layer aluminum mesh filter with reminders for both clean filter maintenance and charcoal filter replacement (charcoal filter not included).
3 SPEED FUNCTION

3 fan speeds allow for easy adjustment between low 232, medium 330, or high 550 CFM.
LED LIGHTING

Dual level LED light strip illuminates your cooking area.
CONVERTIBLE

Vent out with additional charcoal filters (FT0130) and recirculation kit (ARC3001T) (not included).

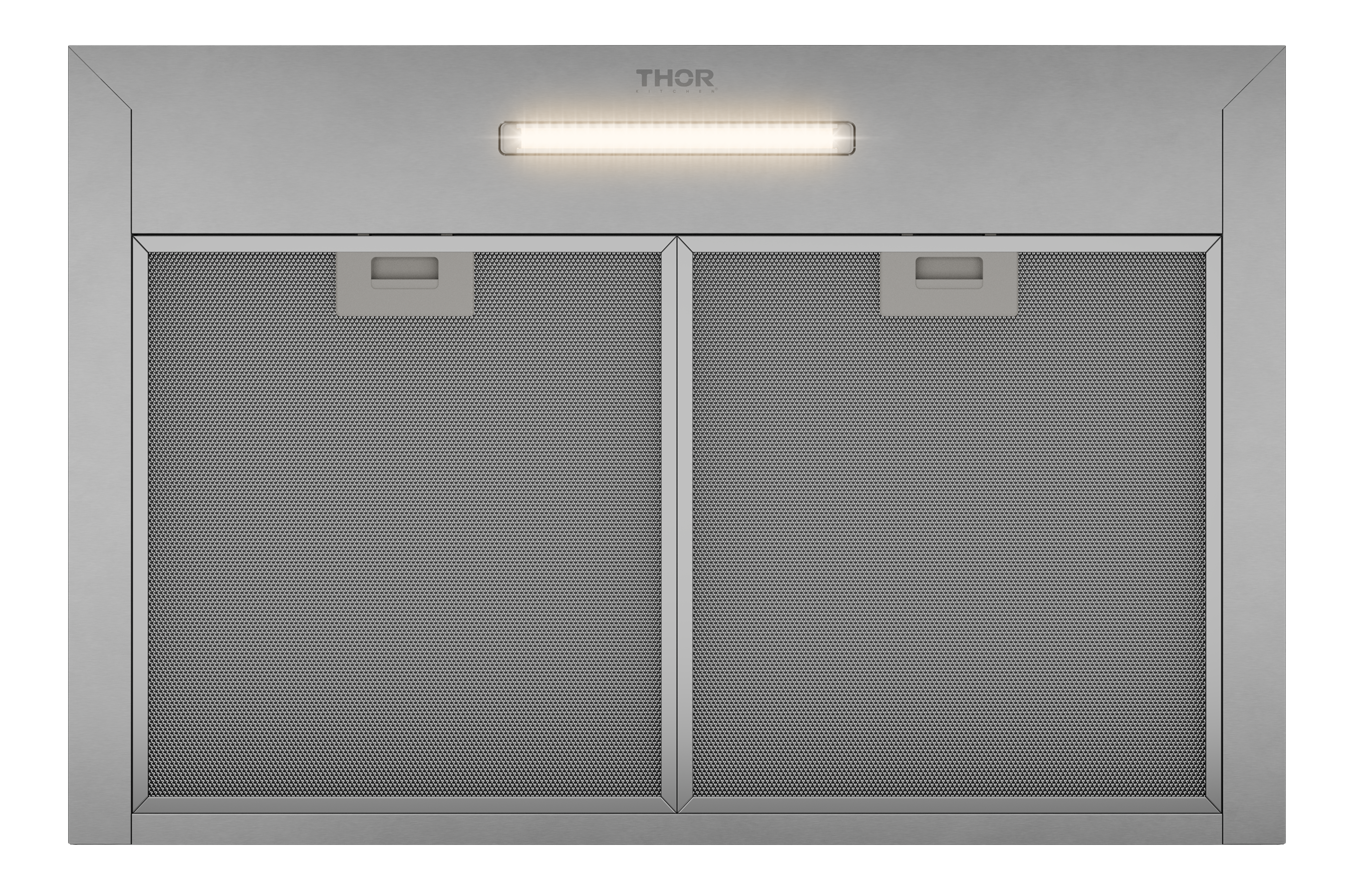

5-LAYER ALUMINUM MESH FILTER

The 5-layer aluminum mesh filter, featured in our air purifiers, guarantees superior particle capture. This means you enjoy cleaner air and an extended filter life thanks to its durable aluminum construction.
COLOR

Stainless Steel, a timeless, sleek finish exuding durability and sophistication.
CONTROL TYPE

3-Speed Touch Control, seamlessly adjust settings with a modern touch interface offering three speed options for effortless customization
