Technical Details Fuel Type Natural or Liquid Propane + Electric Installation Type Freestanding Required Circuit 50 Amps Dedicated Circuit Volts (V) 240V Frequency (Hz) 60Hz Control Type Knob / Touch Screen Plug Type NEMA 14-50p Power Cord Length (in.) Canada only. Not included in USA/Mexico

Dimensions Product Dimensions (W*D*H) 48” × 24.75” × 36.13” Product Height (from bottom to top of back splash) 41.38" Product Height (from bottom to top of side panel) 32.88" Product Depth (from back panel to bullnose) 28.50" Product Depth (from back panel to control panel) 27.25" Product Depth (from back panel to side panel front) 24.75" Package Dimensions (W*D*H) 48” × 24” × 36” Weight Net Weight 398 lbs Gross weight 470 lbs

CUTOUT Cutout Width 48" Cutout Depth 24" Cutout Height 36"

XRD48E

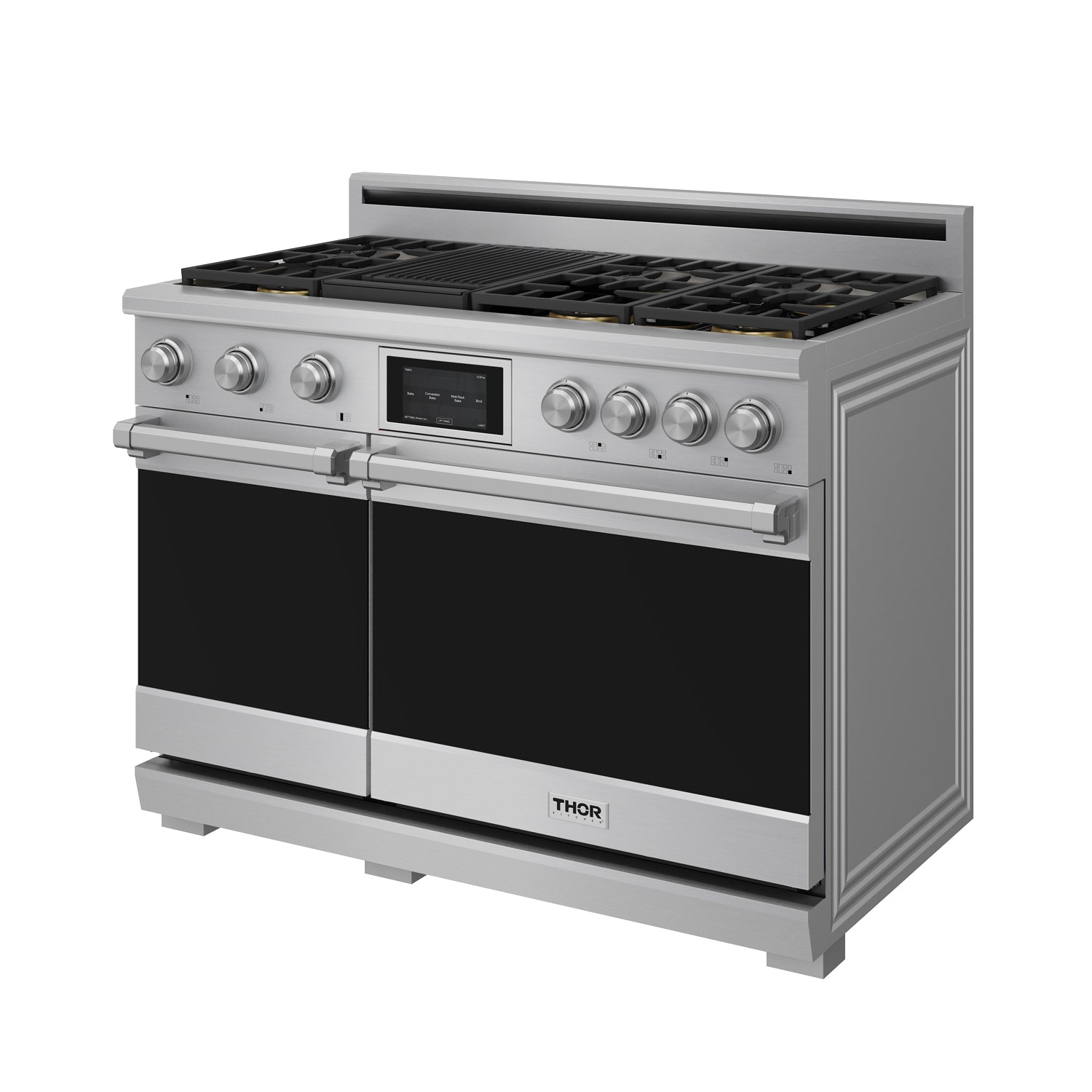

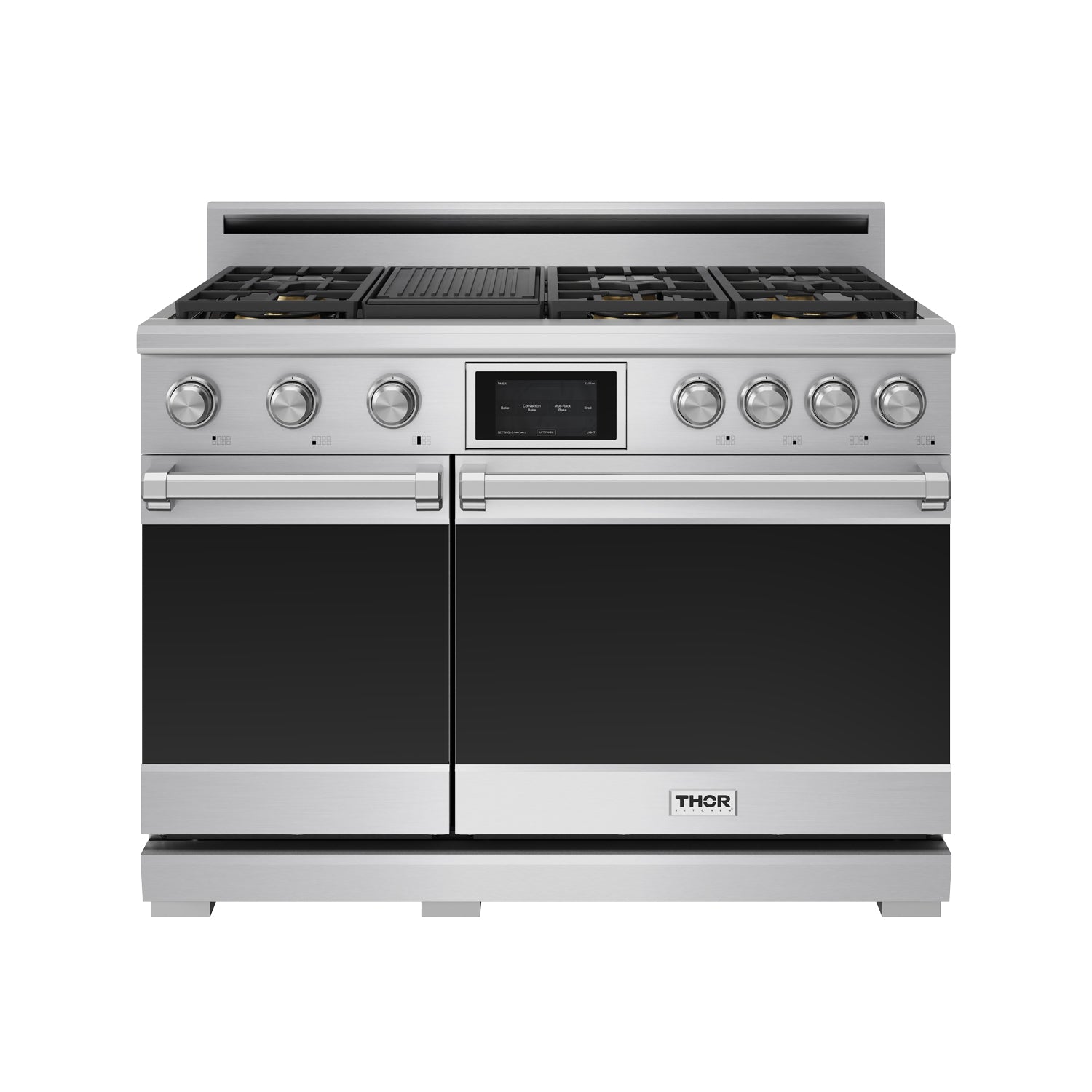

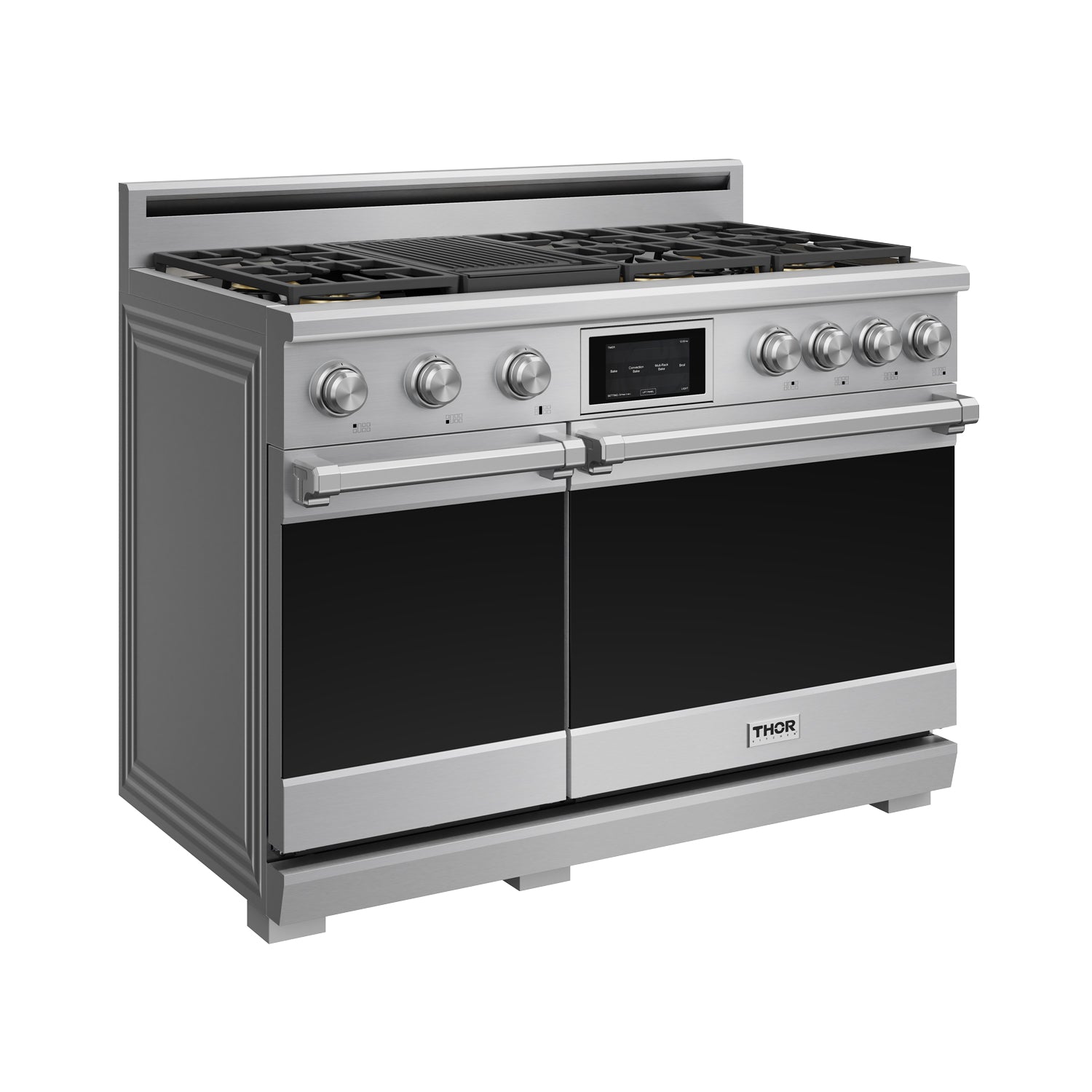

48 Inch X Series Professional Freestanding Dual Fuel Range

Name: 48 Inch X Series Professional Freestanding Dual Fuel Range
Brand: thorkitchen.ca
SKU: XRD48E
Price: 9999.00 CAD
Availability: OutOfStock

The THOR Kitchen XRD48E is a 48‑inch professional dual‑fuel range built for ambitious home chefs, featuring Italian brass burners including three powerful 22,000 BTU dual‑flame burners, a griddle burner, and additional high‑output burners for versatile cooktop performance. It includes a double oven configuration (4.8 cu ft and 2.2 cu ft) with independent temperature controls and a wide range of cooking modes such as Bake, Broil, Convection Bake/Roast, Air Fry, Proof, and Self‑Clean, all managed from a responsive tilt panel touch control. Premium touches like luxurious telescopic racks, soft‑close oven doors, continuous cast‑iron grates, blue LED illuminated knobs, built‑in casters with leveling legs, and automatic re‑ignition enhance functionality and ease of use, while included accessories (broiler pan, air fry basket, meat probe, grill/griddle grate) expand versatility and convenience in the kitchen.

$9,999.00

All-in-One Kitchen Solution

Whether you're grilling, stir-frying, or chopping, the Griddle, Wok Ring and Bamboo Cutting Board for Gas Rangetop is the perfect combo. Hurry, only at thorkitchen.com

Technical Details
Fuel Type	Natural or Liquid Propane + Electric
Installation Type	Freestanding
Required Circuit	50 Amps Dedicated Circuit
Volts (V)	240V
Frequency (Hz)	60Hz
Control Type	Knob / Touch Screen
Plug Type	NEMA 14-50p
Power Cord Length (in.)	Canada only. Not included in USA/Mexico

Dimensions
*Product Dimensions (WDH)*	48” × 24.75” × 36.13”
Product Height (from bottom to top of back splash)	41.38"
Product Height (from bottom to top of side panel)	32.88"
Product Depth (from back panel to bullnose)	28.50"
Product Depth (from back panel to control panel)	27.25"
Product Depth (from back panel to side panel front)	24.75"
*Package Dimensions (WDH)*	48” × 24” × 36”

Weight
Net Weight	398 lbs
Gross weight	470 lbs

CUTOUT
Cutout Width	48"
Cutout Depth	24"
Cutout Height	36"

Specification and Manual

📄 Specification Sheet
📄 Use and Care Manual
📄 Installation Manual

Technical

Technical Details
Fuel Type	Natural or Liquid Propane + Electric
Installation Type	Freestanding
Required Circuit	50 Amps Dedicated Circuit
Volts (V)	240V
Frequency (Hz)	60Hz
Control Type	Knob / Touch Screen
Plug Type	NEMA 14-50p
Power Cord Length (in.)	Canada only. Not included in USA/Mexico

Dimension and Weight

Dimensions
*Product Dimensions (WDH)*	48” × 24.75” × 36.13”
Product Height (from bottom to top of back splash)	41.38"
Product Height (from bottom to top of side panel)	32.88"
Product Depth (from back panel to bullnose)	28.50"
Product Depth (from back panel to control panel)	27.25"
Product Depth (from back panel to side panel front)	24.75"
*Package Dimensions (WDH)*	48” × 24” × 36”

Weight
Net Weight	398 lbs
Gross weight	470 lbs

Cutout

CUTOUT
Cutout Width	48"
Cutout Depth	24"
Cutout Height	36"

Spec and Manual

Specification and Manual

📄 Specification Sheet
📄 Use and Care Manual
📄 Installation Manual

PRODUCT FEATURES

A tilt panel touch control is an adjustable control panel that tilts for optimal viewing and ease of use.

4.8 cu. ft. + 2.8 cu. ft. – Cook multiple dishes at once using separate large and small ovens, each with independent temperature control.

Offers versatile cooking modes including Bake, Roast, Broil, Keep Warm, Proof, Pizza, Self-Clean, and Air Fry.

TILT PANEL TOUCH CONTROL

A tilt panel touch control is an adjustable control panel that tilts for optimal viewing and ease of use.

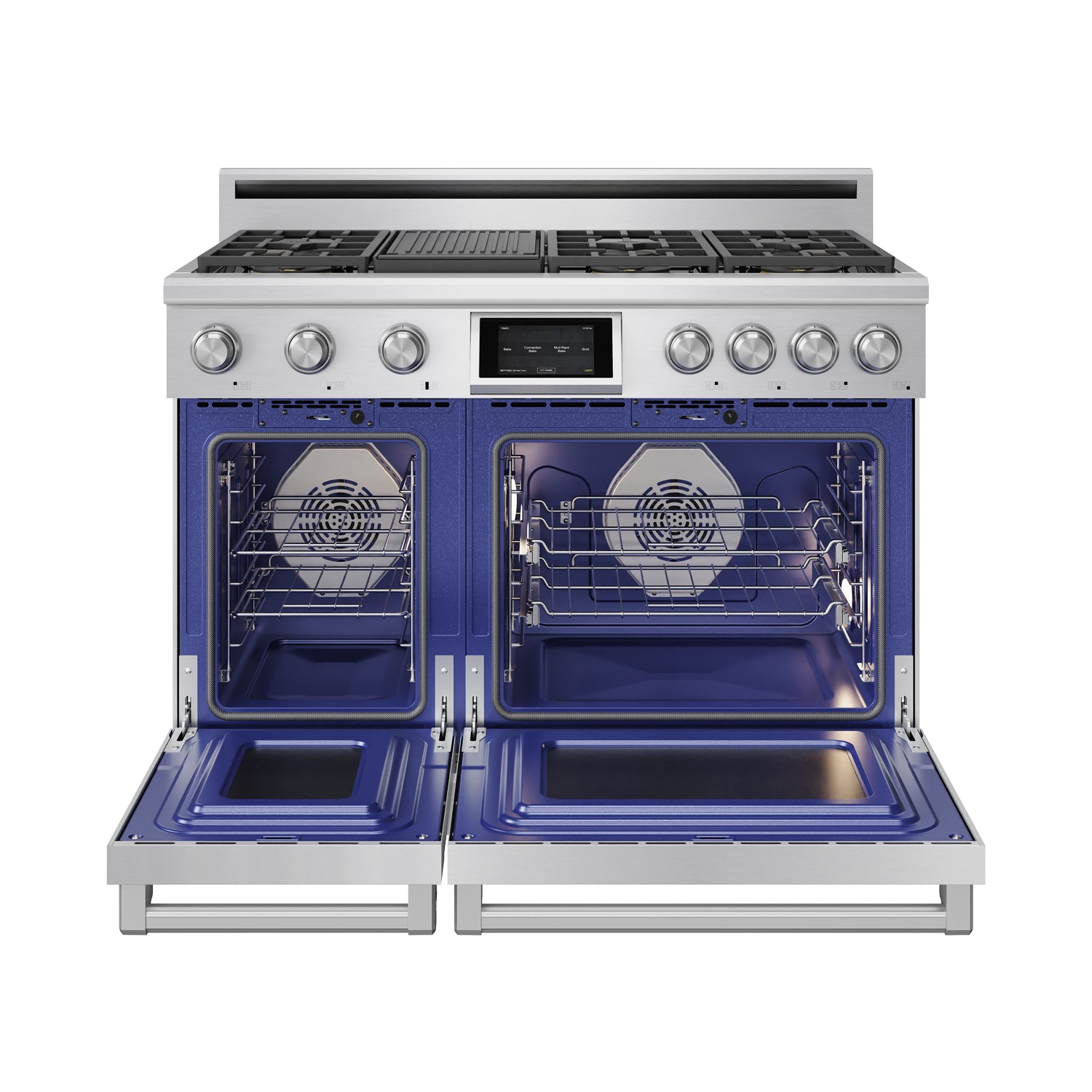

DOUBLE OVEN

4.8 cu. ft. + 2.8 cu. ft. – Cook multiple dishes at once using separate large and small ovens, each with independent temperature control.
MULTI-FUNCTION OVEN

Offers versatile cooking modes including Bake, Roast, Broil, Keep Warm, Proof, Pizza, Self-Clean, and Air Fry.

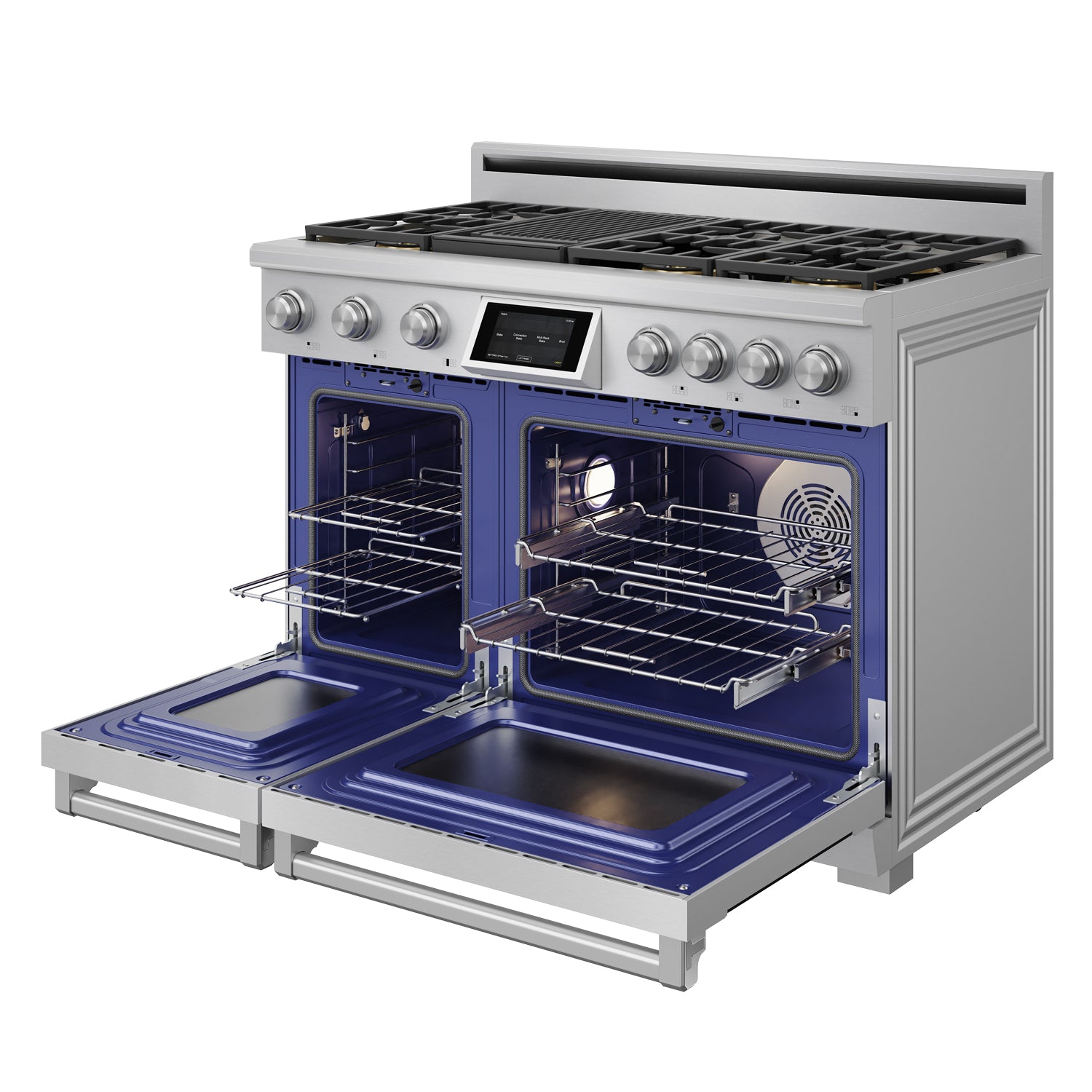

LUXGLIDE™ TELESCOPIC RACKS

Telescopic racks use ball-bearing rack guides for an effortless glide in and out of the oven. This luxury feature allows the rack to extend fully without tipping over for smooth, easy handling of even the heaviest dishes, and adjusts to fit different rack support levels.
SOFT-CLOSE OVEN DOOR

Gently closes for a quieter, more premium cooking experience.

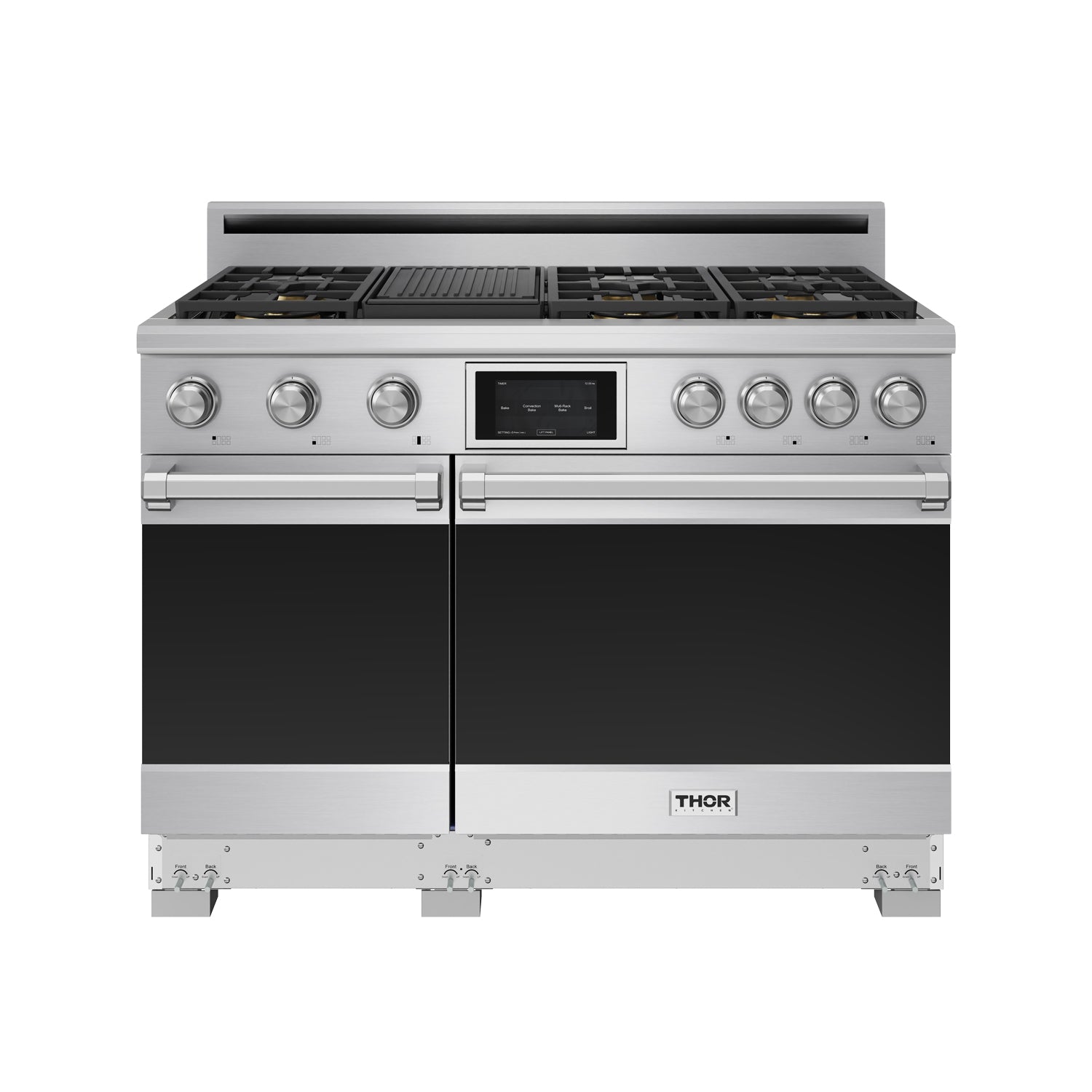

BUILT-IN CASTERS AND LEVELING LEGS

Easily reposition the range when needed, then level for a secure fit and seamless countertop alignment.

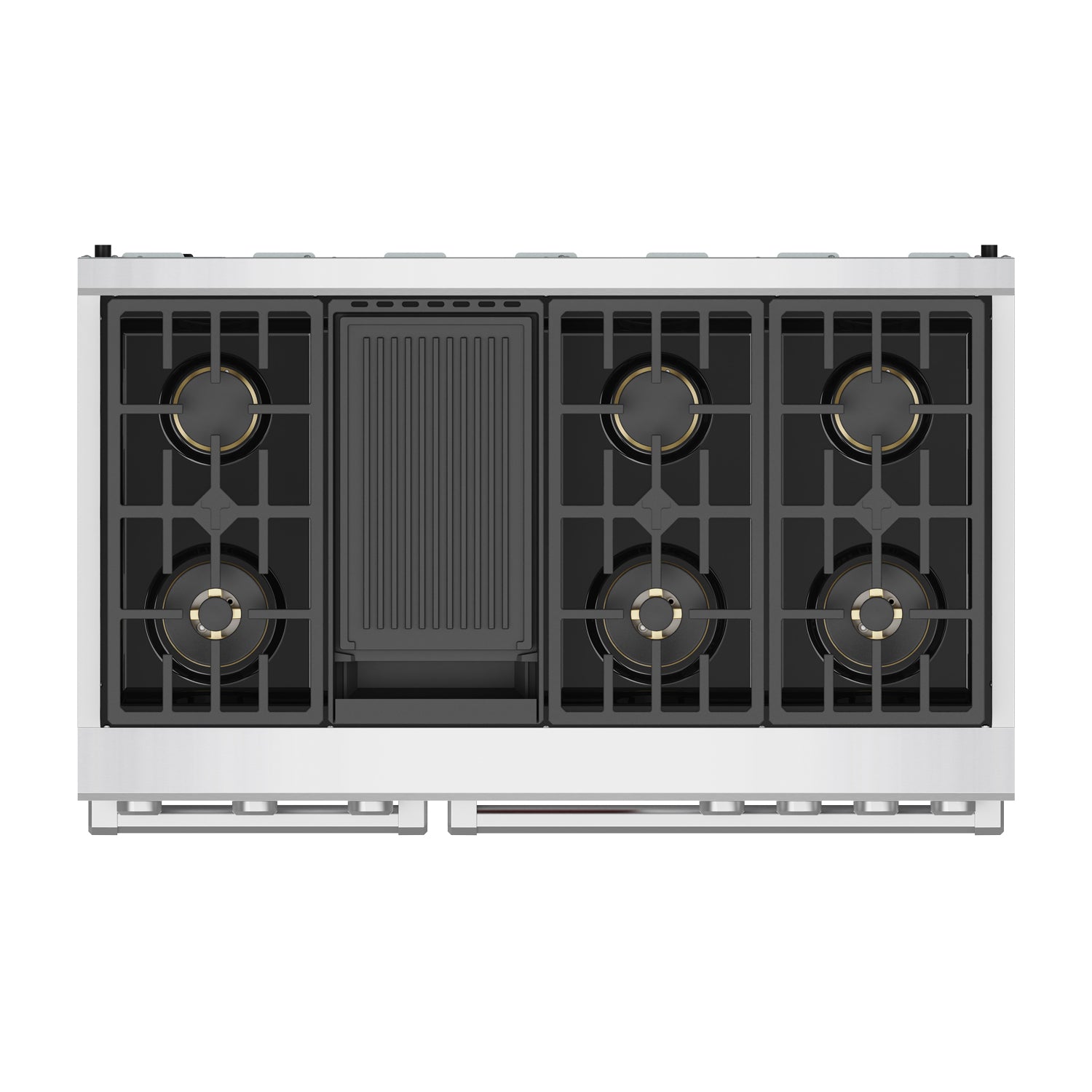

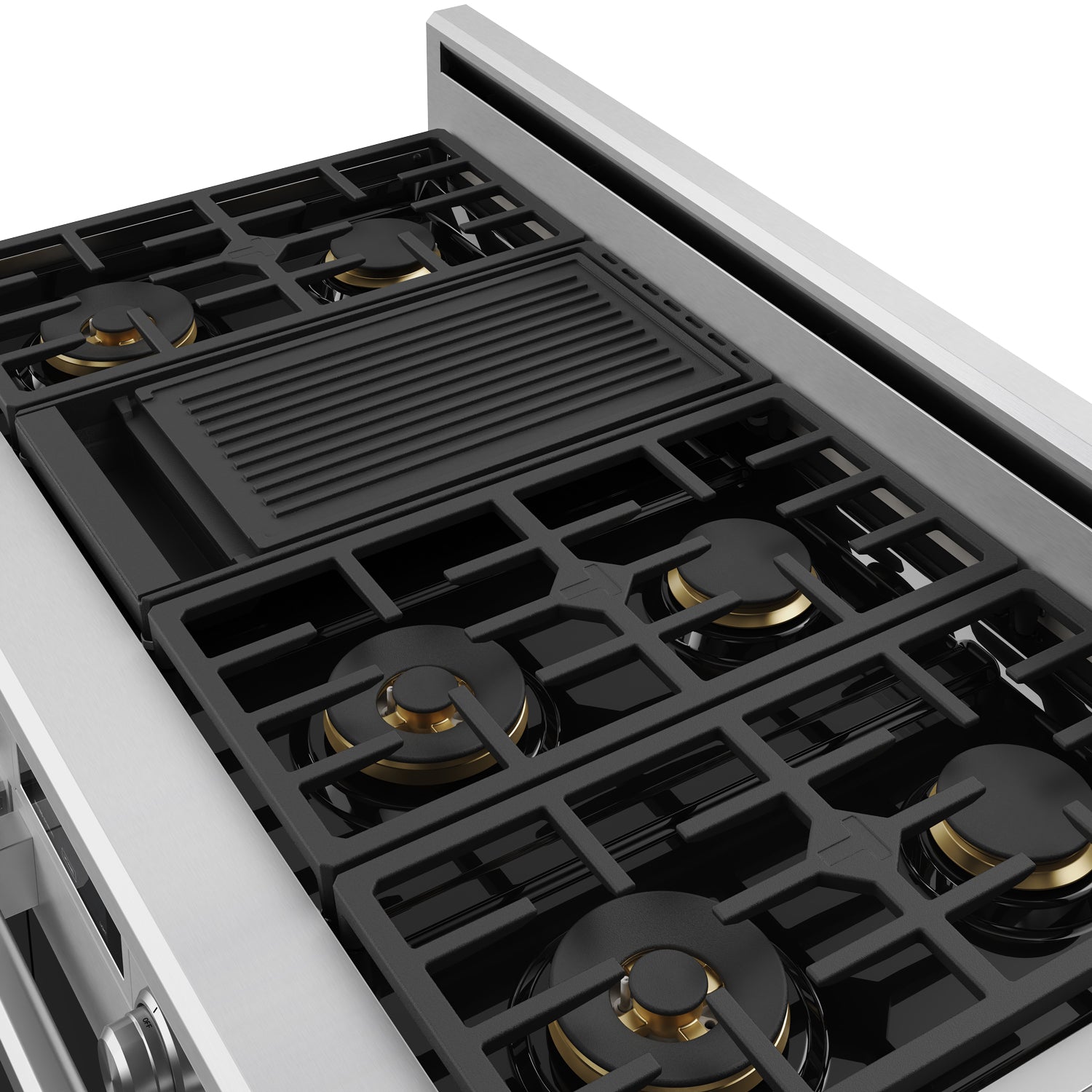

ITALIAN BRASS BURNERS WITH 22,000 BTU DUAL BURNER

Premium Italian brass burners deliver powerful heat up to 22,000 BTUs and gentle simmer control down to 1,000 BTUs.

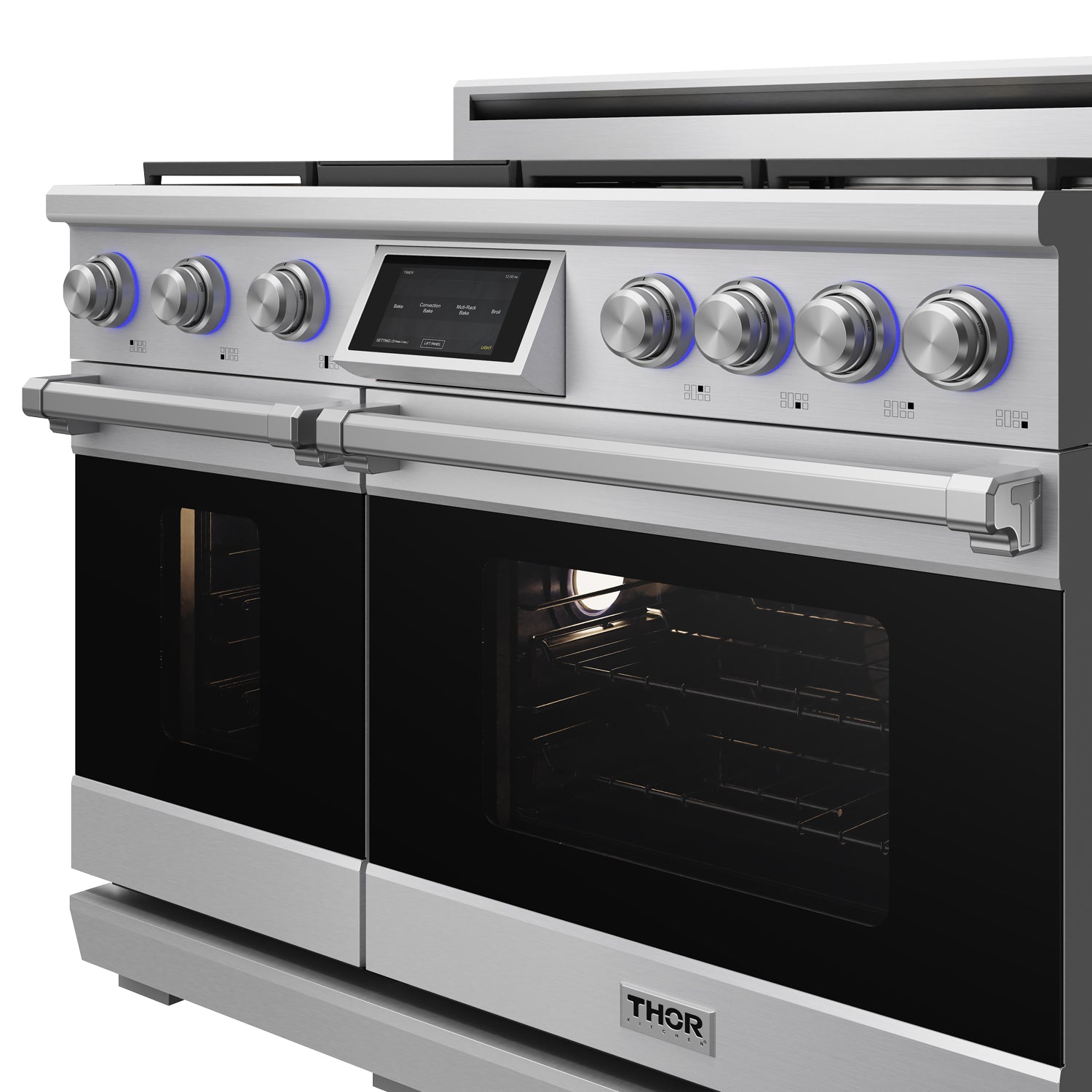

BLUE LED ILLUMINATED KNOBS

Sleek, backlit knobs provide a clear visual cue when burners are in use, enhancing safety and modern style—even visible from across the kitchen.
