Technical Details Total Capacity (cu. ft.) 12.4 Freezer Capacity (cu. ft.) 12.4 Watts 160 Amperage (A) 15 Volts (V) 120 Frequency (Hz) 60 Plug Type 3-Prong Plug Power Cord Length (in.) 90-9/16 Temperature Control +5°F (-15°C) to -11°F(-24°C) Door Hinge Field Reversible Design General Properties Number Of Doors 1 Number Of Shelves 4 Number Of Freezer Drawers 3 Adujustable Racks & Removable Shelves 3 Shelf Material Spill Proof Glass Shelf Reversible Door Swing Yes Soft Closing Drawer Feature Yes Water Filter Yes Lighting LED Freezer Defrost Process Automated Defrosting Certification Energy Star rated / ETL Certified

Dimensions Product Dimensions (HxWxD) (in.) 23-3/4 x 23-5/16 x 83-9/16 Package (HxWxD) (in.) 26-2/8 x 26-3/8 x 90-9/16 Product Depth Excluding Door 21-7/8 Product Depth With Door Open 90 Degrees 51 Stainless Steel Door Panels with Handle Set for XRF24CFZ (DKXRF24CRFZ-SS) Freezer Door Dimensions (WxHxD) 23-3/4 x 3/4 x 79-15/16 Net Weight (lbs.) 55 lbs Weight Product Weight (lbs) 296 lbs Package Weight (lbs 306 lbs

Cutout Cutout Dimensions (WxDxH) 24 x 25 x 84

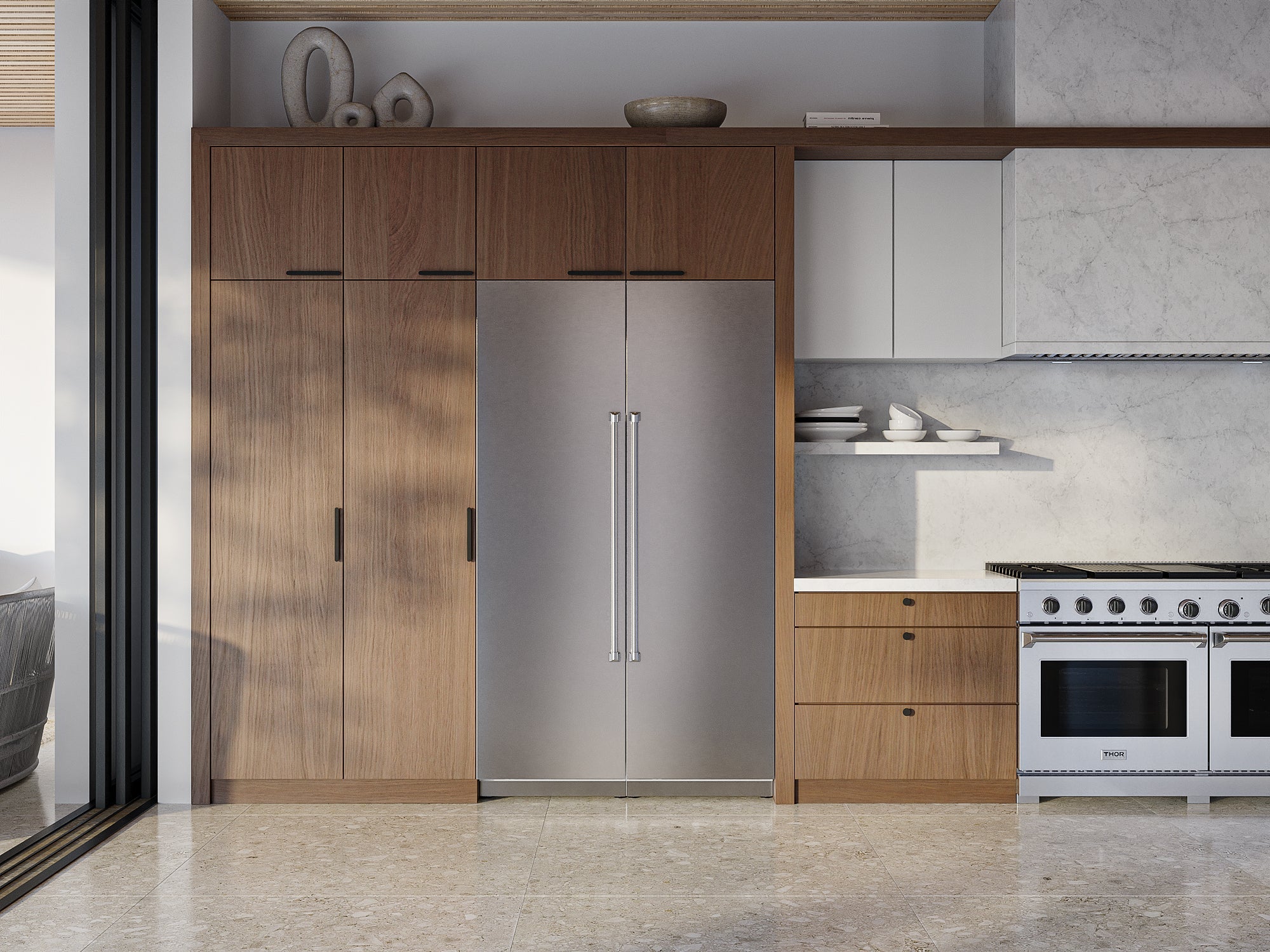

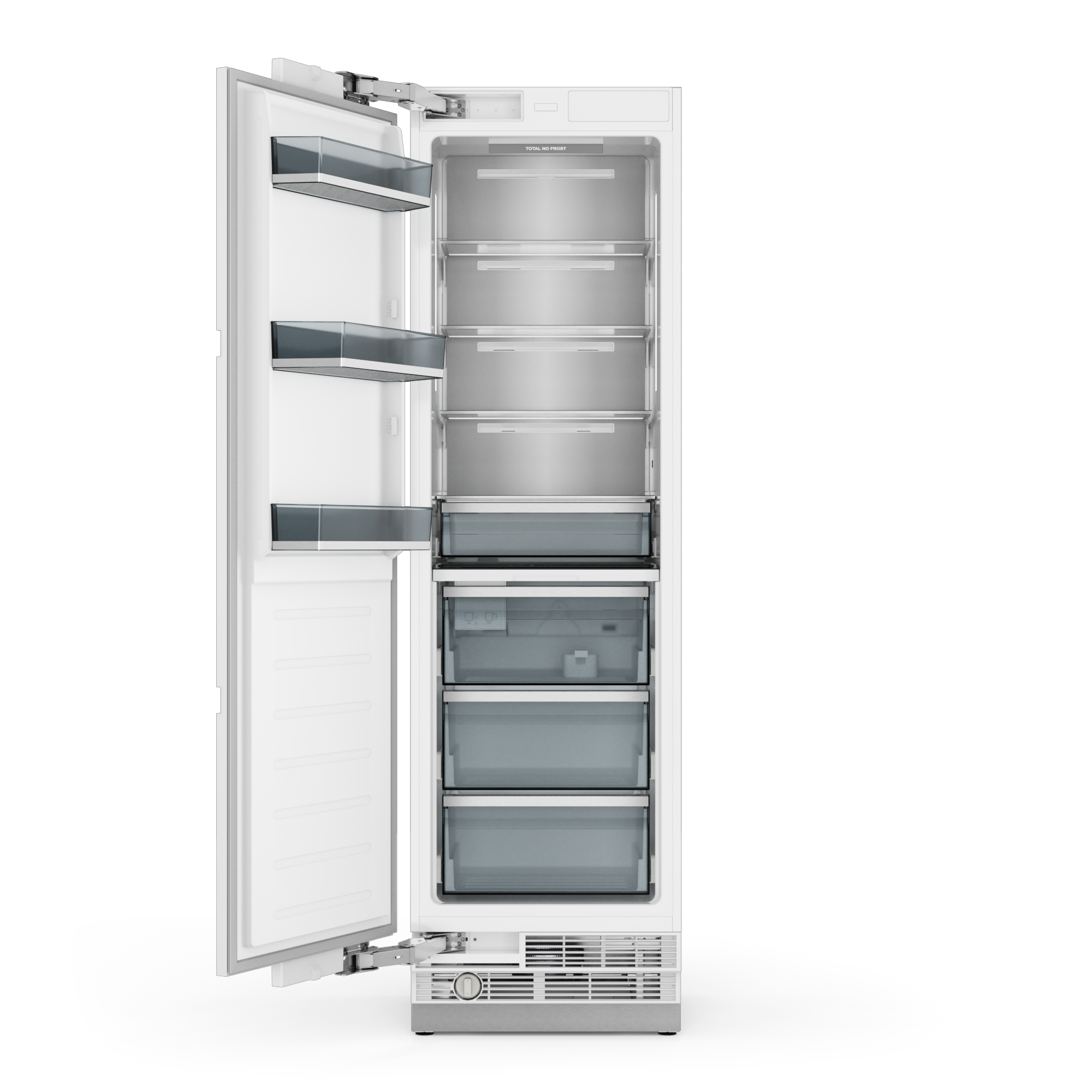

Thor Kitchen 24-inch Built-in Freezer Column, Panel Ready

XRF24CFZ

Thor Kitchen 24-inch Built-in Freezer Column, Panel Ready - XRF24CFZ

Q: Spec and Manual

Specification and Manual 📄 Specification Sheet 📄 Use and Care Manual 📄 Installation Manual

THOR Kitchen offers the power and performance of a premium professional appliance at a practical price. Thor's XRF24CFZ Built-in Freezer Column combines innovative features with modern design to meet your kitchen's needs. Its Total No Frost technology prevents ice and moisture build-up, while the automatic ice maker provides up to 4 lbs. of ice daily. Fast freezing locks in freshness and taste, complemented by bright, energy-efficient interior LED lighting. With a digital display and soft-close drawers, this freezer offers intuitive control and a premium feel. Operating at an ultra-quiet 43 dB(A), it ensures a tranquil kitchen environment. Precise temperature control from +5°F (-15°C) to -11°F (-24°C) and modes like Sabbath, Holiday, and ECO.

$5,976.00

$8,367.00

With or Without Panel:

Without Panel Stainless Steel Panel

Size:

24 Inch

Variant

Thor Kitchen 24-inch Built-in Freezer Column, Panel Ready

$5,976.00

$8,367.00

All-in-One Kitchen Solution

Whether you're grilling, stir-frying, or chopping, the Griddle, Wok Ring and Bamboo Cutting Board for Gas Rangetop is the perfect combo. Hurry, only at thorkitchen.com

Technical Details
Total Capacity (cu. ft.)	12.4
Freezer Capacity (cu. ft.)	12.4
Watts	160
Amperage (A)	15
Volts (V)	120
Frequency (Hz)	60
Plug Type	3-Prong Plug
Power Cord Length (in.)	90-9/16
Temperature Control	+5°F (-15°C) to -11°F(-24°C)
Door Hinge	Field Reversible Design

General Properties
Number Of Doors	1
Number Of Shelves	4
Number Of Freezer Drawers	3
Adujustable Racks & Removable Shelves	3
Shelf Material	Spill Proof Glass Shelf
Reversible Door Swing	Yes
Soft Closing Drawer Feature	Yes
Water Filter	Yes
Lighting	LED
Freezer Defrost Process	Automated Defrosting
Certification	Energy Star rated / ETL Certified

Dimensions
Product Dimensions (HxWxD) (in.)	23-3/4 x 23-5/16 x 83-9/16
Package (HxWxD) (in.)	26-2/8 x 26-3/8 x 90-9/16
Product Depth Excluding Door	21-7/8
Product Depth With Door Open 90 Degrees	51

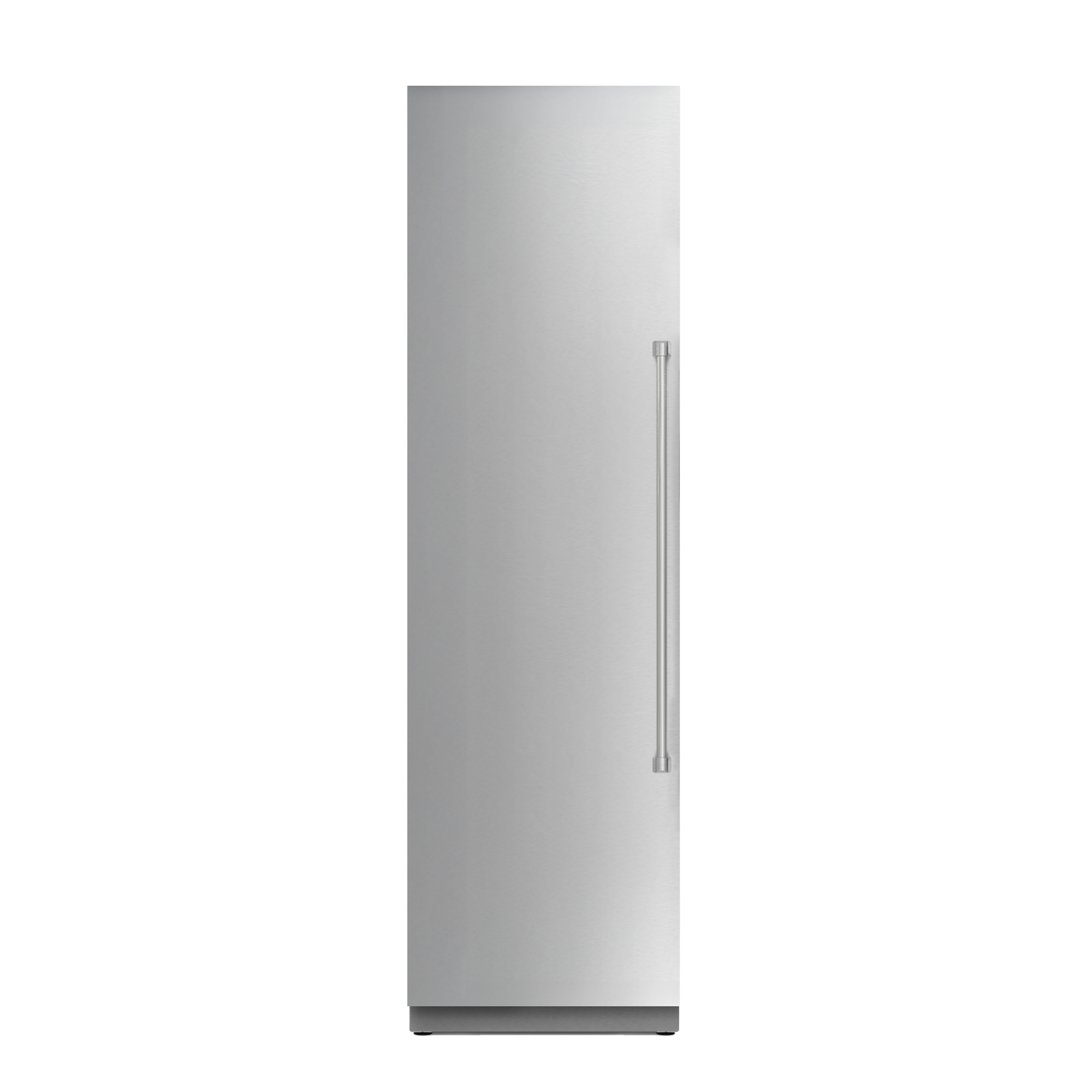

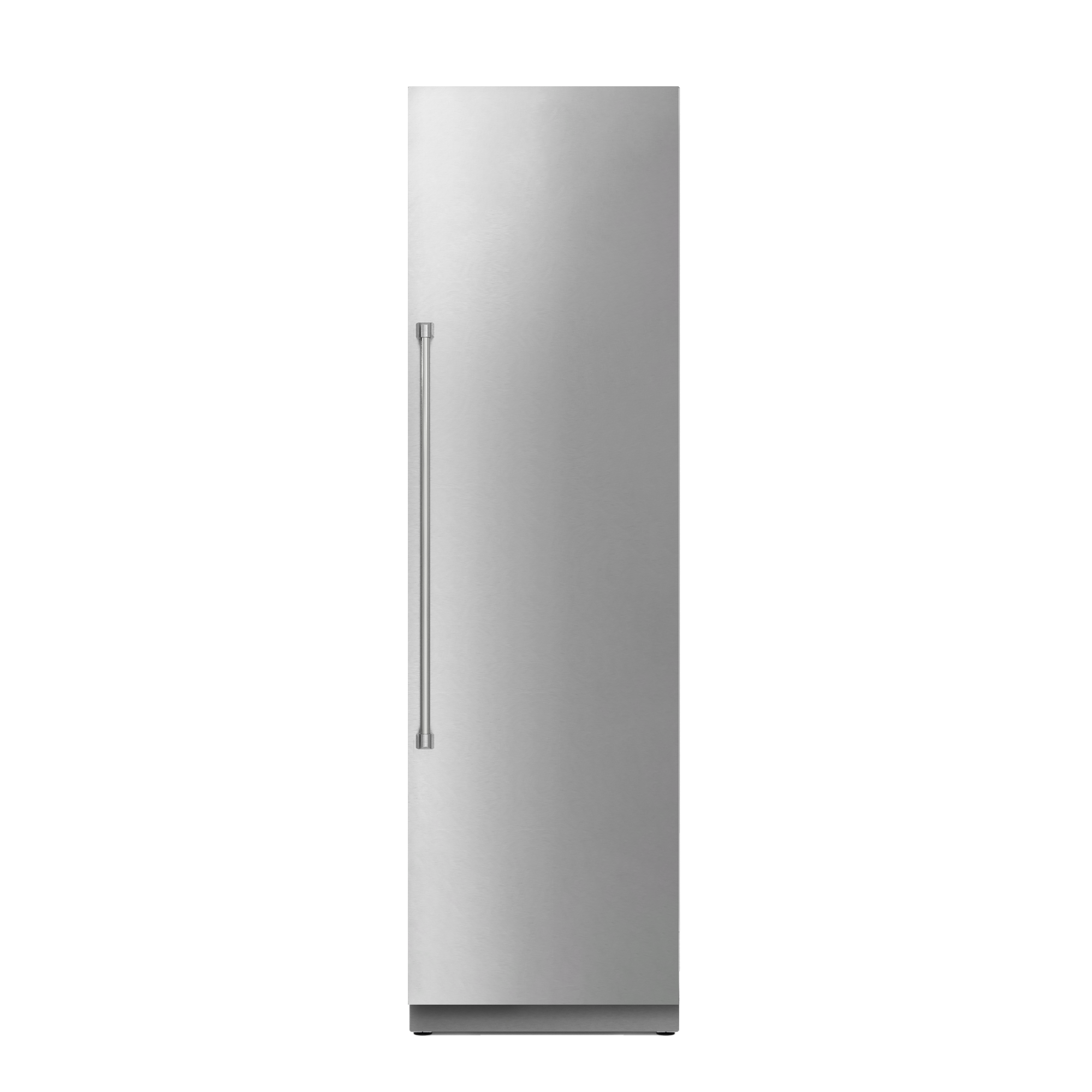

Stainless Steel Door Panels with Handle Set for XRF24CFZ (DKXRF24CRFZ-SS)
Freezer Door Dimensions (WxHxD)	23-3/4 x 3/4 x 79-15/16
Net Weight (lbs.)	55 lbs

Weight
Product Weight (lbs)	296 lbs
Package Weight (lbs	306 lbs

	Cutout
Cutout Dimensions (WxDxH)	24 x 25 x 84

Specification and Manual

📄 Specification Sheet
📄 Use and Care Manual
📄 Installation Manual

Technical

Technical Details
Total Capacity (cu. ft.)	12.4
Freezer Capacity (cu. ft.)	12.4
Watts	160
Amperage (A)	15
Volts (V)	120
Frequency (Hz)	60
Plug Type	3-Prong Plug
Power Cord Length (in.)	90-9/16
Temperature Control	+5°F (-15°C) to -11°F(-24°C)
Door Hinge	Field Reversible Design

General Properties
Number Of Doors	1
Number Of Shelves	4
Number Of Freezer Drawers	3
Adujustable Racks & Removable Shelves	3
Shelf Material	Spill Proof Glass Shelf
Reversible Door Swing	Yes
Soft Closing Drawer Feature	Yes
Water Filter	Yes
Lighting	LED
Freezer Defrost Process	Automated Defrosting
Certification	Energy Star rated / ETL Certified

Dimension and Weight

Dimensions
Product Dimensions (HxWxD) (in.)	23-3/4 x 23-5/16 x 83-9/16
Package (HxWxD) (in.)	26-2/8 x 26-3/8 x 90-9/16
Product Depth Excluding Door	21-7/8
Product Depth With Door Open 90 Degrees	51

Stainless Steel Door Panels with Handle Set for XRF24CFZ (DKXRF24CRFZ-SS)
Freezer Door Dimensions (WxHxD)	23-3/4 x 3/4 x 79-15/16
Net Weight (lbs.)	55 lbs

Weight
Product Weight (lbs)	296 lbs
Package Weight (lbs	306 lbs

Cutout

	Cutout
Cutout Dimensions (WxDxH)	24 x 25 x 84

Spec and Manual

Specification and Manual

📄 Specification Sheet
📄 Use and Care Manual
📄 Installation Manual

PRODUCT FEATURES

Keep food fresh by dropping temperatures to the coldest settings within 24 hours

Built-in technology to prevent ice build up.

Seamlessly integrates with cabinetry for a polished look, enhancing kitchen aesthetics.

Fast Freezing

Keep food fresh by dropping temperatures to the coldest settings within 24 hours
Frost Free

Built-in technology to prevent ice build up.
Flush Hinge Installation Benefits

Seamlessly integrates with cabinetry for a polished look, enhancing kitchen aesthetics.

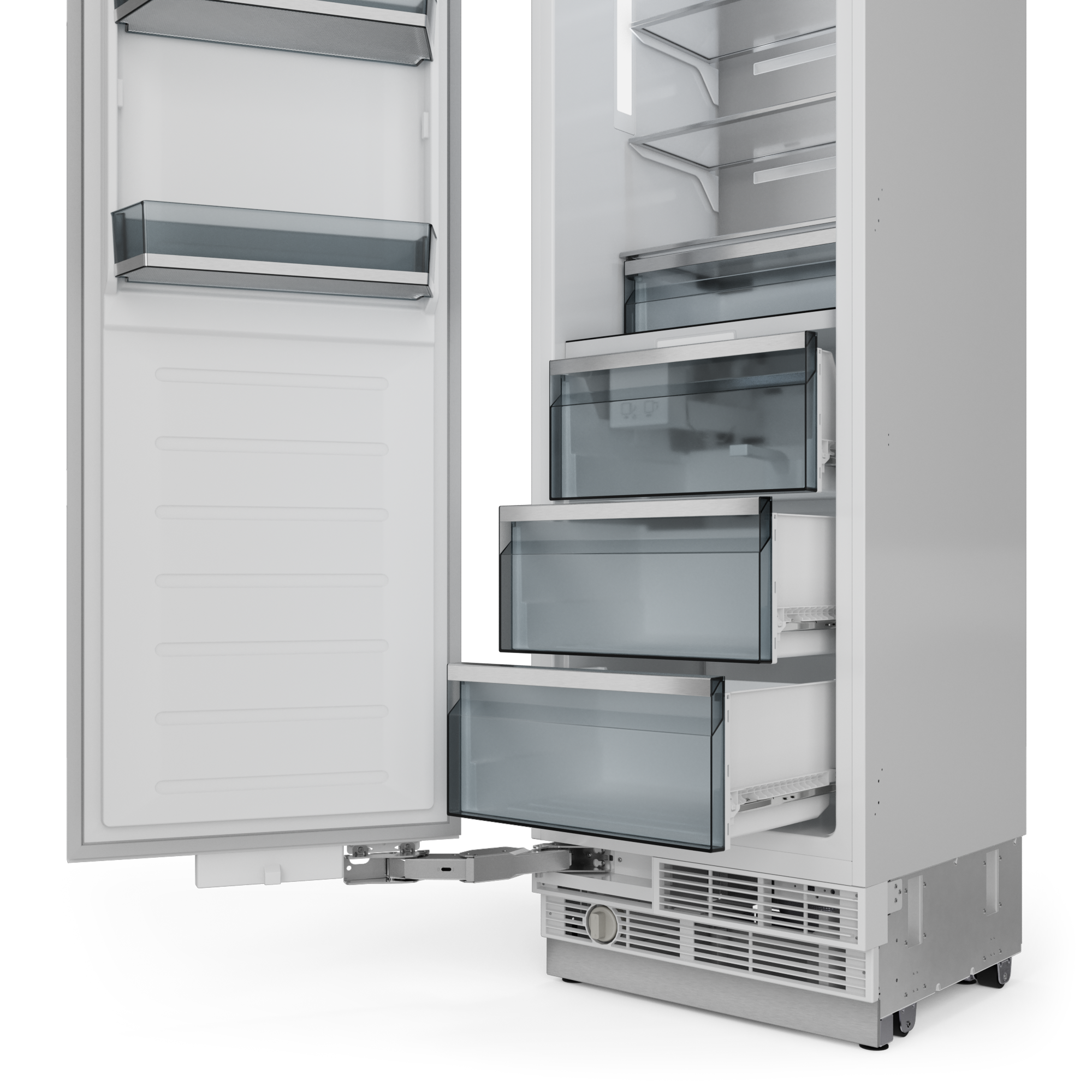

Soft-Close Drawers

Ensures gentle and silent closing, preventing slamming and reducing wear and tear over time.
LED Interior Lighting

Illuminates the interior for better visibility, making it easier to locate items and enhancing the overall user experience

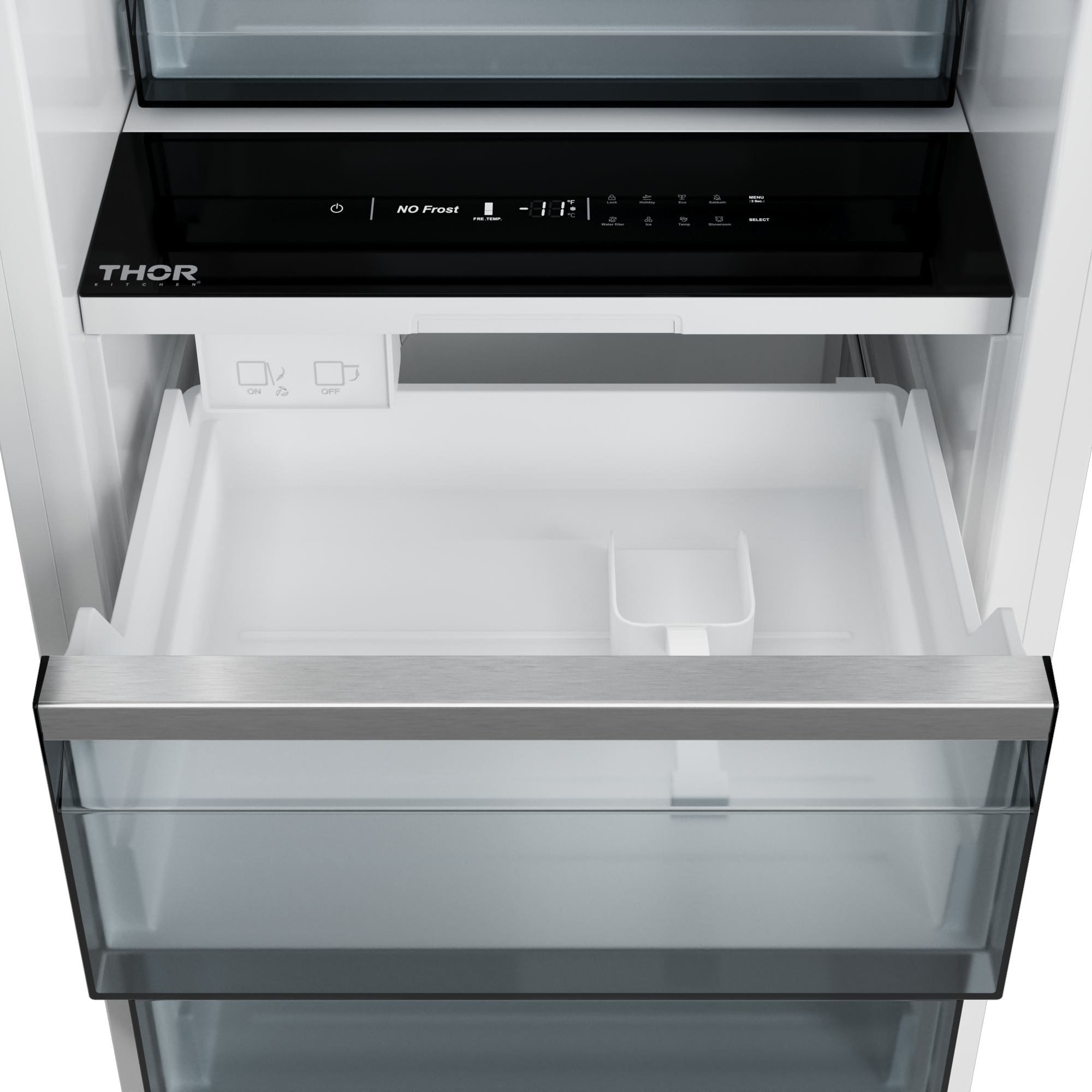

Automatic Ice Maker

Internal automatic ice maker that produces up to 4 lbs of ice daily.
Ultra-Quiet Operation

Operates at an ultra-quiet 43 dBA for a peaceful kitchen environment without compromising performance.

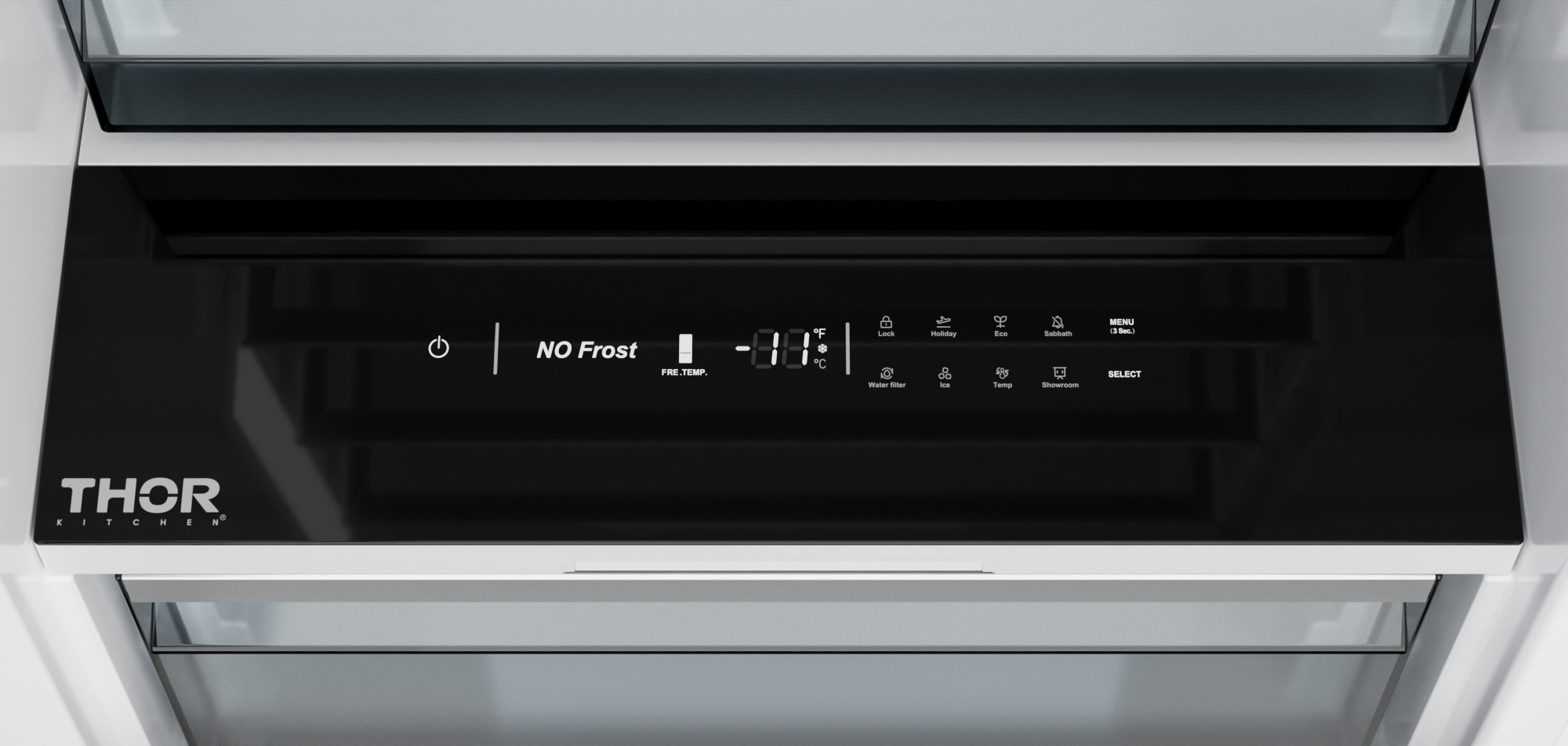

Customized Modes

Tailor refrigerator operation with Sabbath, Holiday, and ECO modes, optimizing energy usage and functionality.
