Flush Hinge Install Benefits
-

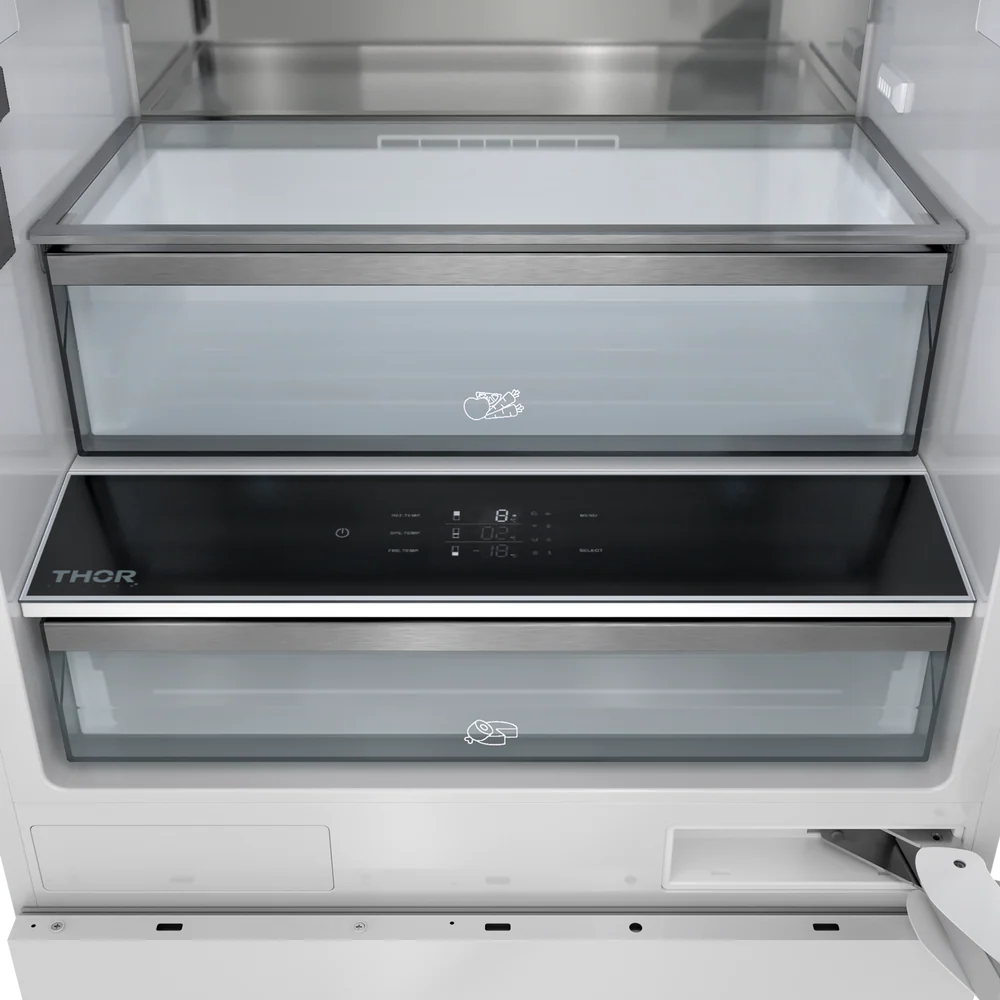

Digital Display
-
Soft-close Drawers
-
Customized Modes
-

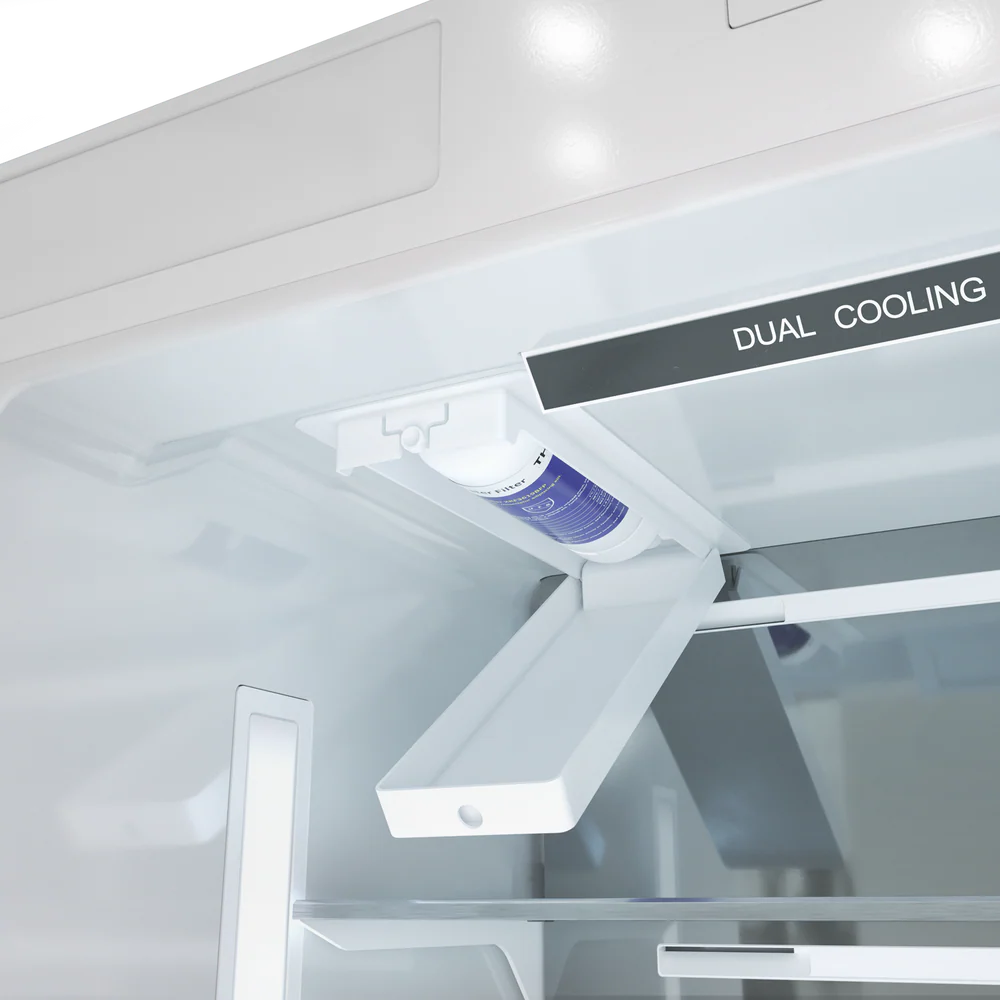

Interior Water Dispenser
-
Height-adjustable Shelves
-
Spill-proof Glass Shelves
-
LED Interior Lighting
Thor Kitchen 30-inch Built-In Stainless-Steel Panel-Ready Bottom Mount Refrigerator – XRF3016BBP-SS
Sale price$8,167.00
Choose options
All-in-One Kitchen Solution
Whether you're grilling, stir-frying, or chopping, the Griddle, Wok Ring and Bamboo Cutting Board for Gas Rangetop is the perfect combo. Hurry, only at thorkitchen.com
No complementary products found.
| Technical Details | |
|---|---|
| Total Capacity (cu. ft.) | 16.1 |
| Refrigerator Capacity (cu. ft.) | 11.6 |
| Freezer Capacity (cu. ft.) | 4.5 |
| Amperage or Current (A) | 15A |
| Volts (V) | 120V |
| Frequency (Hz) | 60Hz |
| Plug Type | 3-Prong Grounding Plug |
| Power Cord Length (in.) | 86.6 |
| Energy consumption | 551 kwh/yr |
| General Properties | |
|---|---|
| Number Of Doors | 2 |
| Number Of Shelves | 3 |
| Number Of Freezer Baskets | 2 |
| Number of Door Bins | 3 (2+1 Gallon Bins) |
| Adjustable Racks & Removable Shelves | 2 |
| Shelf Material | Glass |
| Reversible Door Swing | Yes |
| Soft Closing Drawer Feature | Yes |
| Water Filter | Yes |
| Lighting | LED |
| Freezer Defrost Process | Automated Defrosting |
| Refrigerator Adjustable Temp | +36°F(2°C) to +46°F(8°C) |
| Chiller Zone Adjustable Temp | +30°F(-1°C) to +41°F(5°C) |
| Freezer Adjustable Temp | +5°F(-15°C) to -11°F(-24°C) |
| Technical Details | |
|---|---|
| Total Capacity (cu. ft.) | 16.1 |
| Refrigerator Capacity (cu. ft.) | 11.6 |
| Freezer Capacity (cu. ft.) | 4.5 |
| Amperage or Current (A) | 15 |
| Volts (V) | 120 |
| Frequency (Hz) | 60 |
| Plug Type | 3-Prong Grounding Plug |
| Power Cord Length (in.) | 86.6 |
| Energy consumption | 551 kwh/yr |
| General Properties | |
|---|---|
| Number Of Doors | 2 |
| Number Of Shelves | 3 |
| Number Of Freezer Baskets | 2 |
| Number of Door Bins | 3 (2+1 Gallon Bins) |
| Adjustable Racks & Removable Shelves | 3 |
| Shelf Material | Glass |
| Reversible Door Swing | Yes |
| Soft Closing Drawer Feature | Yes |
| Water Filter | Yes |
| Lighting | LED |
| Freezer Defrost Process | Automated Defrosting |
| Certification | Energy Star Rated / ETL Certified |
| Dimensions | |
|---|---|
| Product Dimensions (HxWxD) (in.) | 83-9/16 x 29-3/4 x 23-5/16 |
| Package (HxWxD) (in.) | 90-9/16 x 32-5/16 x 26-3/8 |
| Product Height To Top Of Refrigerator (in.) | 83-1/2 |
| Cutout Dimensions (HxWxD) (in.) | 84 x 30 x 25 |
| Stainless Steel Door Panels with Handle Set for XRF3016BBP (DKXRF3016BBP-SS) | |
|---|---|
| Fridge Door Dimensions (WxHxD) | 29-3/4 x 51-1/16 x 3/4 |
| Weight (lbs.) | 38.8 |
| Freezer Door Dimensions (WxHxD) | 29-3/4 x 28-11/16 x 3/4 |
| Weight (lbs.) | 23.8 |
| Weight | |
|---|---|
| Product Weight (lbs) | 342 lbs |
| Package Weight (lbs | 386 lbs |
| # | Water Pressure |
|---|---|
| 1 | The water pressure of the cold water supply must be between 25-80 psi. (1.7-5.5 Bar) |
| 2 | If the water pressure exceeds 80 psi (5.5 Bar), install a pressure limiting device or water impact protector to the water in valve. |
| 3 | Do not install or operate the appliance if the water pressure exceeds 120 psi. (8.3 Bar) |
| 4 | If there are issues with the water pressure, contact a qualified plumber. |
